art. 732 FP
female tee EN 10226
Description

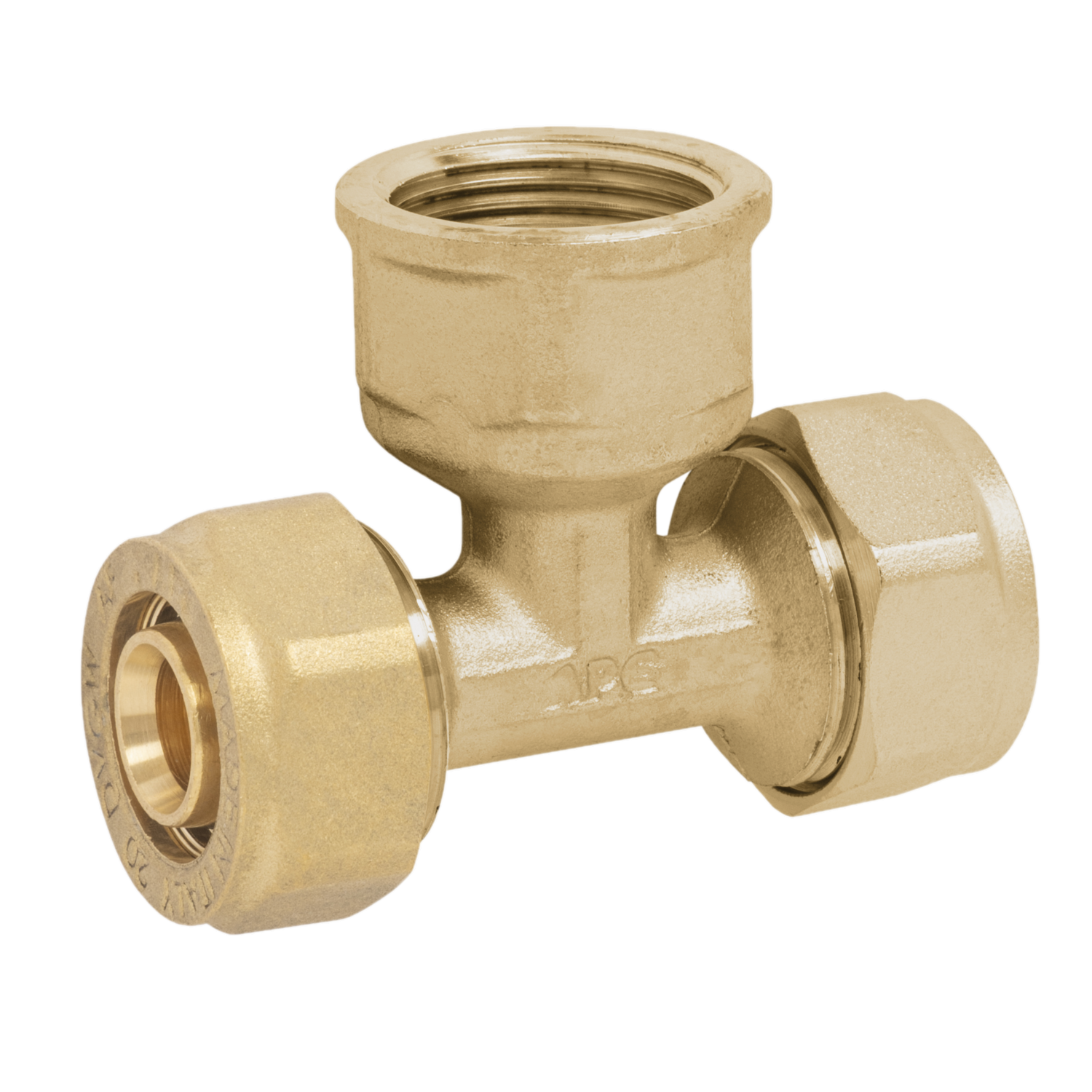

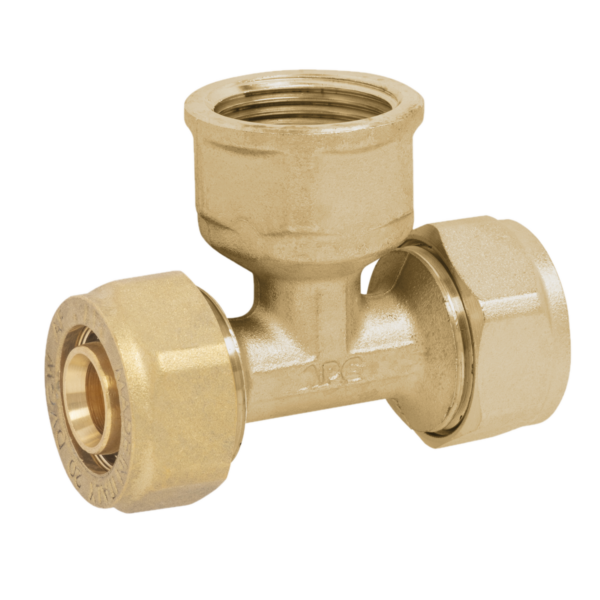

Tee with EN 10226 threaded female offtake single body nickel-plated press fittings for multilayer pipes.
PDFDatasheet
| Product code | Size(mm) | Bag(nr) | Box(nr) | New Box(nr) * |
|---|---|---|---|---|
| 3732FP121620 | Ø16 (2.0) x 1/2" x Ø16 (2.0) | 10 | 60 | |
| 3732FP122020 | Ø20 (2.0) x 1/2" x Ø20 (2.0) | 10 | 80 | 30 |
| 3732FP341620 | Ø16 (2.0) x 3/4" x Ø16 (2.0) | 10 | 100 | 50** |
| 3732FP342020 | Ø20 (2.0) x 3/4" x Ø20 (2.0) | 10 | 70 | 30** |
| 3732FP342630 | Ø26 (3.0) x 3/4" x Ø26 (3.0) | 5 | 50 | 25** |
| 3732FP012630 | Ø26 (3.0) x 1" x Ø26 (3.0) | 5 | 50 | 25** |
(*) APE Raccorderie Srl introduced the usage of a new box (30x21,5x11), with the aim of reducing maximum weights of each box as required by Italian legislative decree 81/08 (referred to the norm ISO 11228). We expect that new box will contain about half of the pieces of the previous box, but real quantities will be updated after the production. Old boxes will be sent until they’ll be out of stock.
(**) Estimated quantity

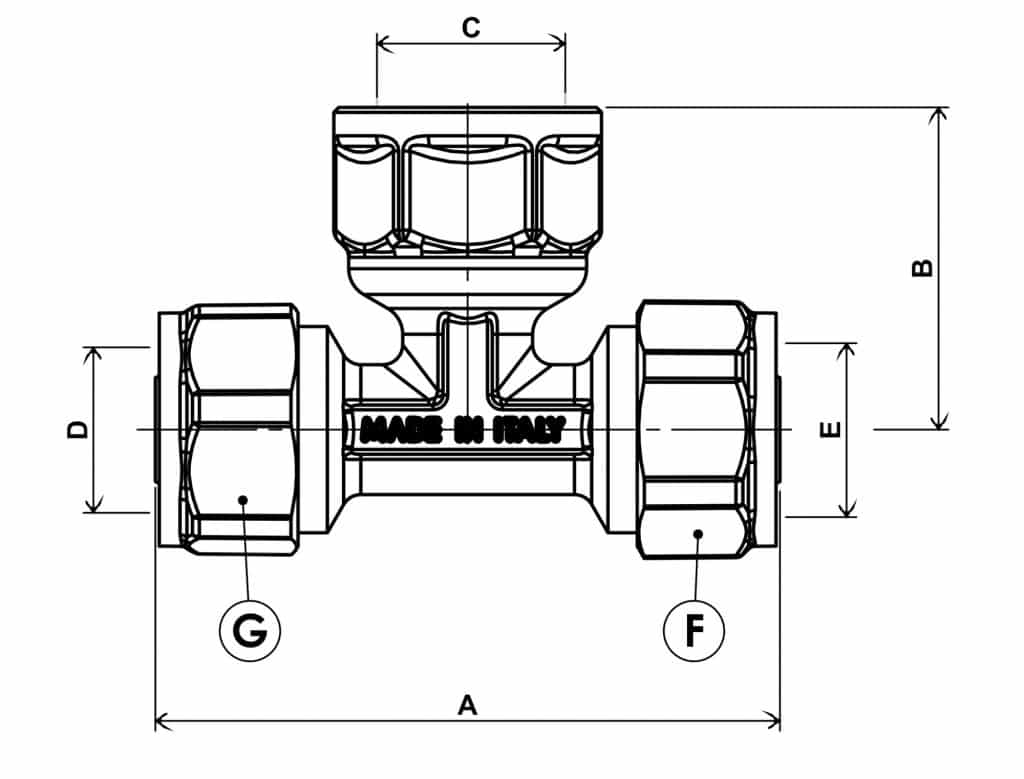

Quoted Design
Quotes
| Product code | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|
| 3732FP121620 | 63,00 | 32,50 | G 1/2" EN10226 | Ø16 | Ø16 | CH 24 | CH 24 |
| 3732FP122020 | 70,28 | 33,50 | G 1/2" EN10226 | Ø20 | Ø20 | CH 30 | CH 30 |
| 3732FP341620 | 63 | 37,50 | G 3/4" EN10226 | Ø16 (2.0) | Ø16 (2.0) | CH 24 | CH 24 |
| 3732FP342020 | 70,28 | 37,50 | G 3/4" EN10226 | Ø20 | Ø20 | CH 30 | CH 30 |
| 3732FP342630 | 87,50 | 39,50 | G 3/4" EN10226 | Ø26 | Ø26 | CH 36 | CH 36 |
| 3732FP012630 | 87,50 | 45 | G 1" EN10226 | Ø26 (3.0) | Ø26 (3.0) | CH 36 | CH 36 |
