Art. 500A

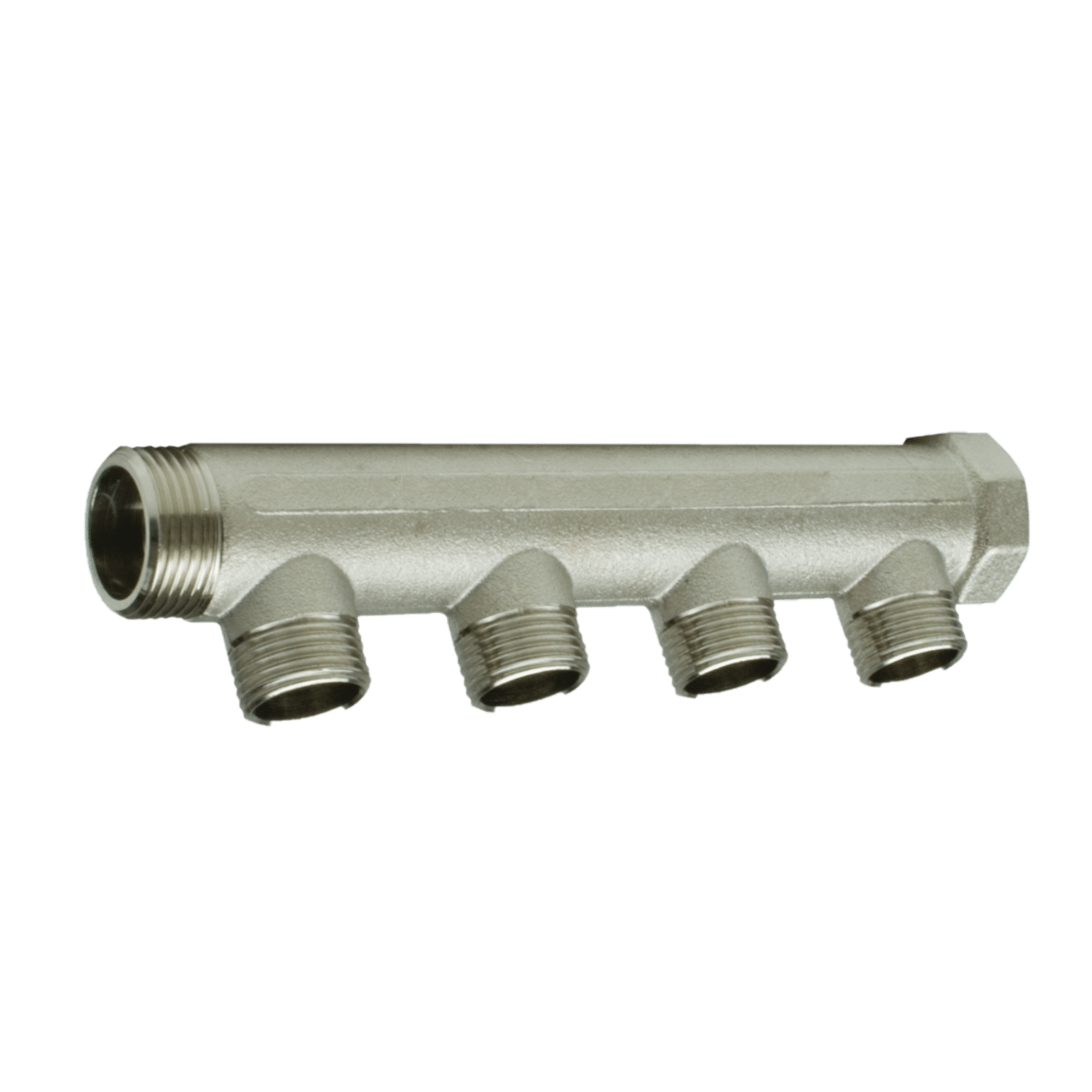

3/4” MF linear manifold with 1/2 M derivations
Description
3/4" MF linear manifold with 1/2 M derivation, 40 mm interaxle spacing for healthcare distribution, compliant with MD 174.
| Product code | Size(mm) | Vie(nr) | Small Box(nr) | Box(nr) | New Box(nr) * |
|---|---|---|---|---|---|
| 35020034N | 3/4" x 1/2" | 2 | 10 | 20 | 10** |
| 35030034N | 3/4" x 1/2" | 3 | 20 | 20 | |
| 35040034N | 3/4" x 1/2" | 4 | 10 | 10 | |
| 35050034N | 3/4" x 1/2" | 5 | 5 | 10 | 5** |
| 35060034N | 3/4" x 1/2" | 6 | 5 | 10 | 5** |
(*) APE Raccorderie Srl introduced the usage of a new box (30x21,5x11), with the aim of reducing maximum weights of each box as required by Italian legislative decree 81/08 (referred to the norm ISO 11228). We expect that new box will contain about half of the pieces of the previous box, but real quantities will be updated after the production. Old boxes will be sent until they’ll be out of stock.
(**) Estimated quantity

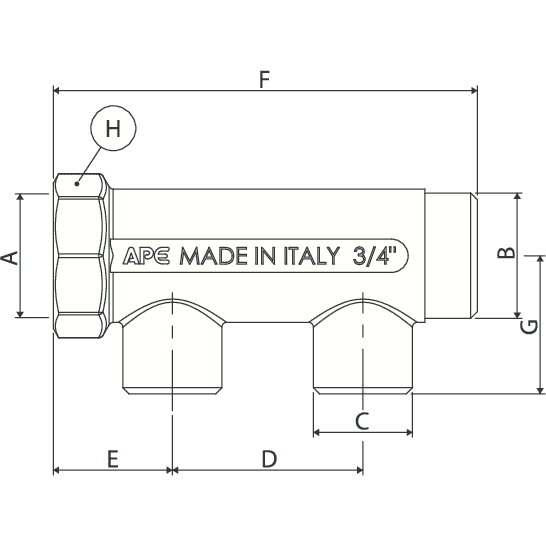

Quoted Design
Quotes
| Product code | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) |
|---|---|---|---|---|---|---|---|---|
| 35020034N | G3/4" ISO 228 | G3/4" ISO 228 | G1/2" ISO 228 | 40 | 25 | 89 | 29 | 32 |
| 35030034N | G3/4" ISO 228 | G3/4" ISO 228 | G2/2" ISO 228 | 40 | 25 | 129 | 29 | 32 |
| 35040034N | G3/4" ISO 228 | G3/4" ISO 228 | G1/2" ISO 228 | 40 | 25 | 169 | 29 | 32 |
| 35050034N | G3/4" ISO 228 | G3/4" ISO 228 | G1/2" ISO 228 | 40 | 25 | 209 | 29 | 32 |
| 35060034N | G3/4" ISO 228 | G3/4" ISO 228 | G1/2" ISO 228 | 40 | 25 | 249 | 29 | 32 |
