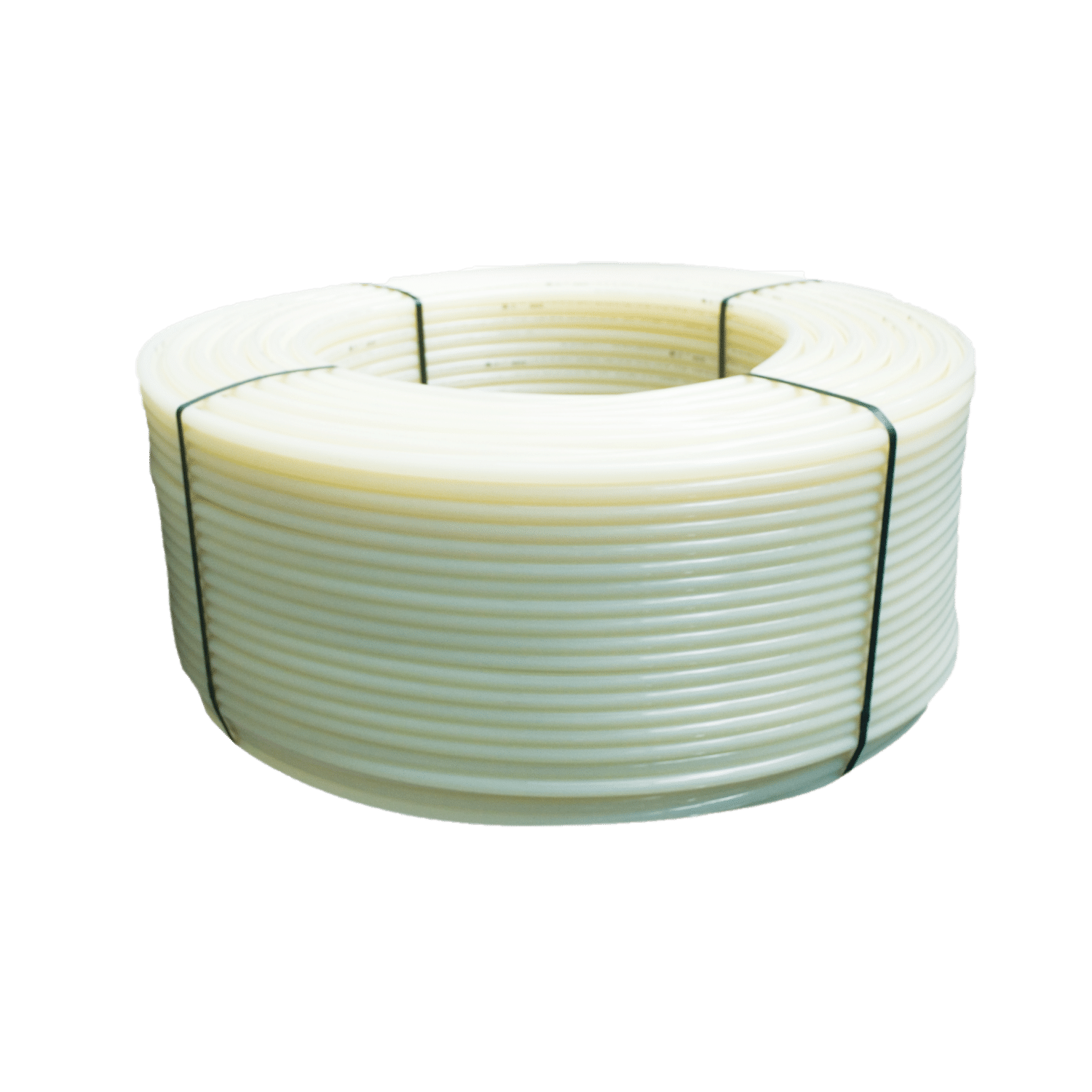

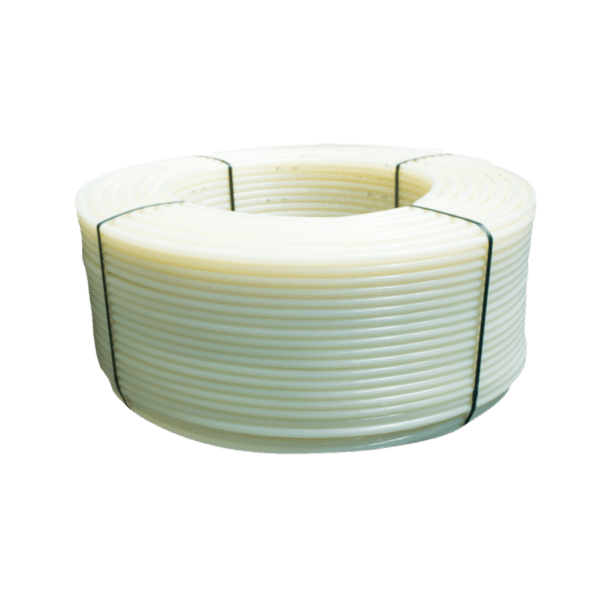

PIPE PE-xC
Description
Reinforced high density polythene pipe following method "A" (Chemical), conforming to standard UNI EN 21003, with five layers: internal PE-xA; a thin mid layer of highly adhesive polymer; oxygen barrier in EVOH (Ethylene Vinyl Alcohol) and a further adhesive polymer layer.
On the outside: medium density polythene.
Max operating temperature: 95°C.
Max peak temperature: 110°C.
Thermal conductivity: 0,35 ÷ 0,38 W/mK.
Permeability to Oxygen 40°C: ≤ 0,08 g/ m³d.
Roughness: 7 μm.
On the outside: medium density polythene.
Max operating temperature: 95°C.
Max peak temperature: 110°C.
Thermal conductivity: 0,35 ÷ 0,38 W/mK.
Permeability to Oxygen 40°C: ≤ 0,08 g/ m³d.
Roughness: 7 μm.
| Product code | Size(mm) | Coil length (m) | Q.ty for pallet(m) | Pallet dimension(cm) |
|---|---|---|---|---|
| 9PEXA1720240 | 17 x 2.0 | 240 | 2160 | 80 x 80 x H.210 |
| 9PEXA1720600 | 17 x 2.0 | 600 | 2400 | 80 x 80 x H.210 |
